名称/Name 单位/Unit GHS-400 锯片直径（任选一种）/Blade diameter（choose one type） mm 350-400 主电机功率/ Main motor power kw 11 工作台尺寸（最大切割尺寸）/Worktable size (Max.cutting size) mm 3200x2000x100 机头旋转角度/Head rotation angle (by hydraulic) degree 0°/90° 工作台旋转角度/Worktable rotation angel degree 360° 刀具倾角/Head tilt angle degree 0°-45° 工作台翻转角度/Worktable up-turning angle degree 0°- 85° 外形尺寸/Overall dimensions (LxWxH) mm 5800x3400x2300 总重/Weight kg 5000

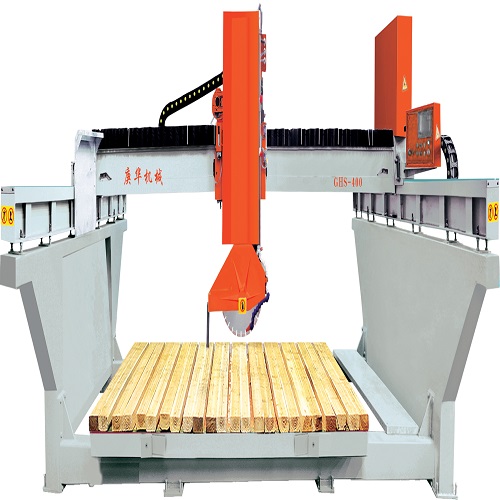

Features of CNC Control Integrated Bridge Type Multi-function Infrared Fully Automatic Edge Cutting Machine (head rotation)

1. The head of this machine can rotate 0°and 90°,it can tilt 0-45°,  table rotating  by （45°、90°、180°、270°、360°) 5 special angels,  and the table overturn 0°~ 85°.
2.  The main motor is water-cool spindle motor, and with inverter for change machine speed, improve cutting effects better.
3. It easy to install, move and operate. Integrated structure, with the characteristic of easy to move, install and simple operation.
