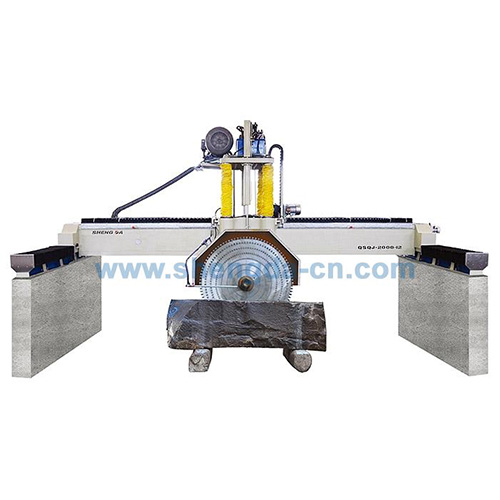

Multi blade block cutter
Multi blade block cutter
  • Multi blade block cutter
  • Multi blade block cutter
Multi blade block cutter
50-99 Pieces
Price negotiable
100-299 Pieces
Price negotiable
300-9999998 Pieces
Price negotiable
>=9999999 Pieces
Price negotiable
price
Price negotiable
Size:
XS
S
M
L
XL
XXS
customized sizes
Color:
Quantity :
piece
in stock 0
Favorites : 0
Views :3306
Consultations :0
For Product pricing,customization,or other inquiries:
Gold Supplier
Company highlights  View company profile >
Employees
0-100
Date of establishment
1998-07-20
Patents
11-50
Certifications(3)
Product Description
Company Overview
Overview
Quick Details
Age Group: adults
Gender: WOMEN
Product Type: Blouses & Tops
Clothing Length: short
Pattern Type: Solid
Collar: O-Neck
Sleeve Length(cm): short
Decoration: none
Supply Type: OEM service
Material: rayon
Fabric Type: Knitted
Top Type: Shirt / Blouse
Technics: YARN DYED
Product Description

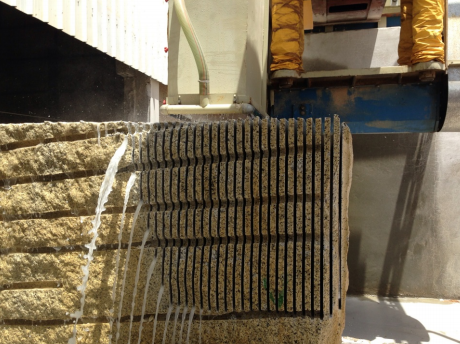

This machine is for cutting granite and marble blocks in small size. The combination of
multiblade with different dimension increases working efficiency. It adopts four hydraulic pump frame structure, driven synchronizely by double screw, high stiffness and stability.
The structural parts of this machine (disc up/down unit, right/left moving unit, forward/
backward moving structure, optional worktable with forward/backward device) are formed
from cast iron giving unrivaled long life, precision, corrosion resistance and acoustic benefits.
The surface preparation of the machine is starting with all the castings being sandblasted,
washed and then the three layers of paint are applied.
1.DISC UP/DOWN UNIT: The structure is in highly resistant cast iron. It adopts four hydraulic pump frame structure, driven synchronizely by double screw with adjustable top and bottom limits.
2. RIGHT/LEFT MOVING UNIT: The beam and moving frame is in highly resistant cast iron. It is driven by the rack and pinion which is connected with the reducer and motor.3. BLADE SPINDLE: The spindle is made of strong cast iron which is driven by the pulley.
And use the SIMENS motor and SKF bearing.
4. FORWARD/BACKWARD MOVING STRUCTURE: it consists of right/left longitudinal beam, slider and synchronized screw. The beam is in highly resistant cast iron, guide in high stable.
5. OPTIONAL TROLLEY: made of highly resistant cast iron for maximum stability and
duration, and a greater absorbency of vibrations and noise, the table with idler wheel is driven by screw.
6.ELECTRIC BOX AND CONTROL PANNEL: The electric box containing electric
equipments. Control panel with all the commands controlling the movements. QSQJ-2000 is a PLC controlled machine. All the electric components including OMROM PLC and
Telemecanique inverter are with stable and precise performance.

Technical Parameter
Blade diameter  mm 2800
Max. No. of blades pc 1-21
Max. cutting length mm   n2800(saw)=3500mm   1600(saw)=4700mm
Max. cutting width mm 2000
Max. cutting height mm 1350
Cooling water consumption m3/h 20
Blade main motor power kw 90
Power supply Vol / Hz 380/50
Standard installation dimensions (L/W/H) mm 8000x5000x7200
Approximate total weight kg 17000

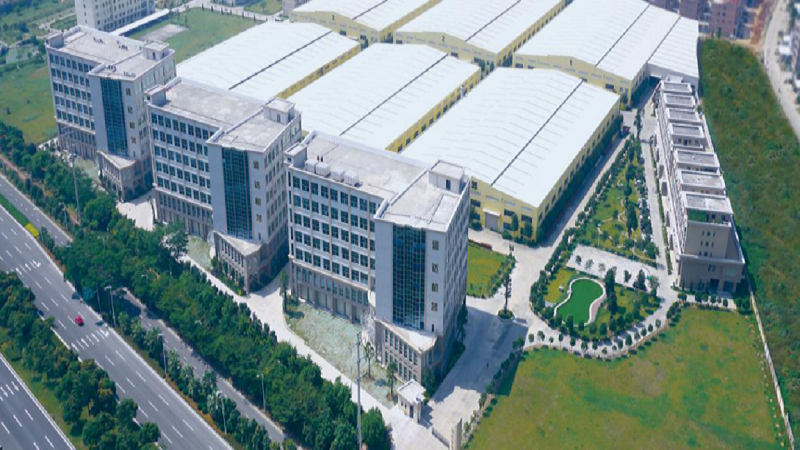

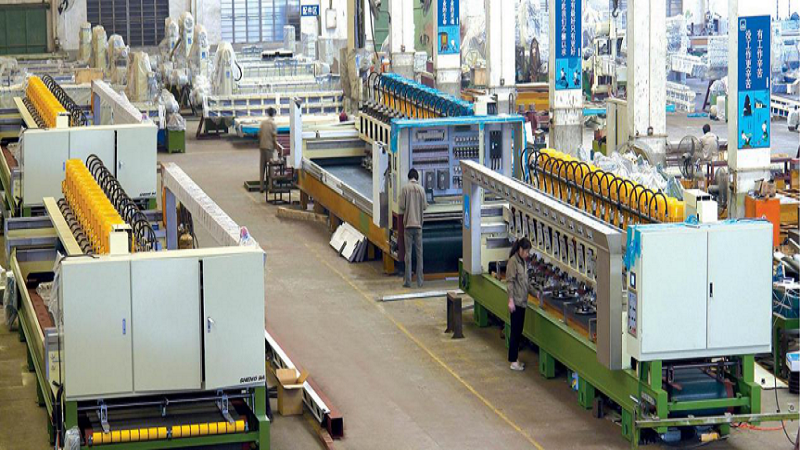

Company video and photos
